Identify your Starlink Dish model

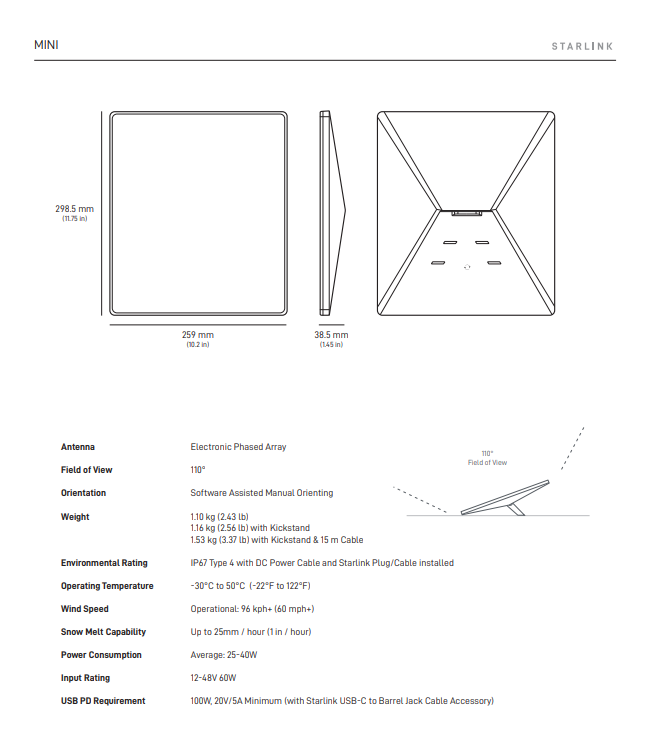

Starlink Mini
The Starlink Mini is SpaceX's compact, portable satellite internet antenna, designed for on-the-go use like camping, RVing, travel, or remote work. It's significantly smaller and lighter than standard Starlink dishes, roughly the size of a laptop.
Key identification features:
Rectangular flat panel measuring approximately 299 mm × 259 mm × 38 mm (11.75" × 10.2" × 1.45").
Weighs about 1.10 kg (2.43 lb) standalone, or 1.16 kg (2.56 lb) with the included kickstand.
Features a built-in Wi-Fi router (no separate router unit needed).
Comes with a kickstand for easy manual positioning, a 15m DC power cable, and supports low-power DC input (average consumption 25–40W, making it ideal for battery/solar setups).
Wide 110° field of view with software-assisted manual orientation (no motorized auto-tilt like larger models).
Rugged IP67-rated design (when cables are installed) for harsh weather, operating from -30°C to 50°C.
Look for its distinctive slim, backpack-friendly profile and triangular kickstand mount—very different from the larger rectangular or circular dishes in other Starlink kits.
This makes it instantly recognizable as the portable "Mini" model. If your dish matches the uploaded image and specs, you have the Starlink Mini!

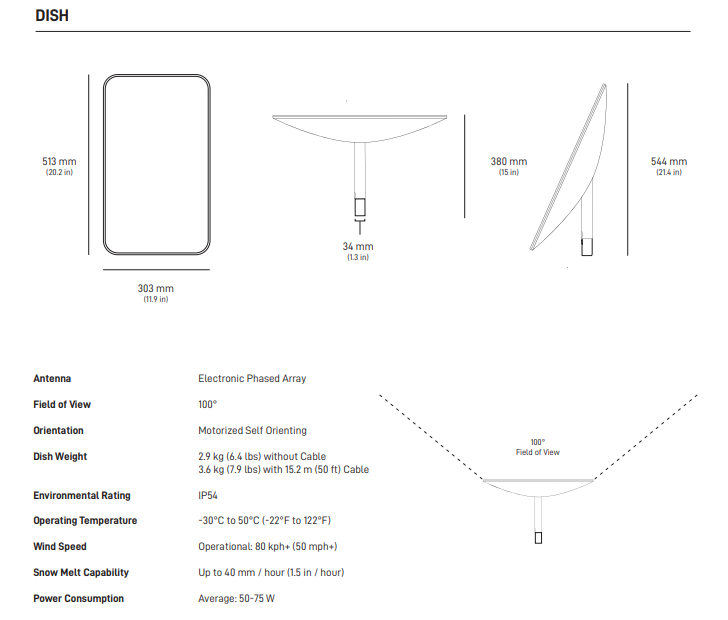

Starlink Standard Actuated (Gen 2)
The Starlink Standard Actuated (Gen 2) is the motorized, self-aligning satellite dish from SpaceX's second-generation hardware, designed for reliable high-speed internet in fixed or semi-permanent setups. It automatically tilts and orients itself for optimal satellite connection—no manual adjustment needed.
Key identification features:
Rectangular panel measuring approximately 513 mm × 303 mm (20.2" × 11.9"), with a total height/depth of about 544 mm (21.4") including the motorized base and mast.
Weighs 2.9 kg (6.4 lb) without cable, or 3.6 kg (7.9 lb) with the 15 m (50 ft) cable.
Features a built-in motorized actuator for automatic self-orientation (tilts to align with satellites).
Comes with an X-shaped or tripod-like base stand for easy setup on flat surfaces.
100° field of view, IP54-rated for dust and splash resistance, operates from -30°C to 50°C (-22°F to 122°F).
Average power consumption: 50–75 W (higher than the Mini due to motors and larger size).
Includes a separate Gen 2 Wi-Fi router (not integrated into the dish).
Look for its distinctive motorized tilt mechanism, slightly bulged rear, thicker profile with the central mast, and larger rectangular shape tilted on a stand—very different from the slim, kickstand-only Starlink Mini or the flatter non-motorized Gen 3 Standard dish.
If your dish matches the uploaded image and specs (rectangular panel on a motorized base with auto-tilt), you have the Starlink Standard Actuated (Gen 2) model!

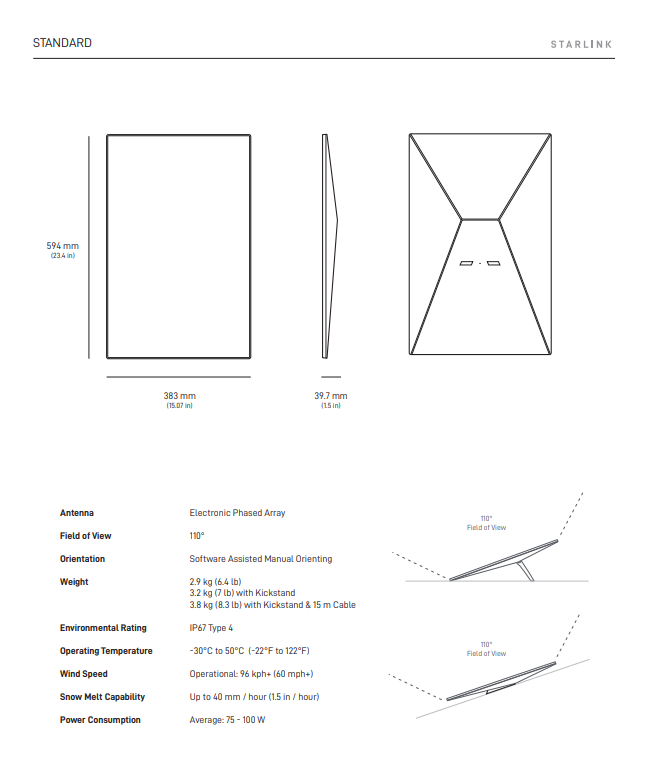

Starlink Standard (Gen 3)
The Starlink Standard (Gen 3) (also known as Dish V4) is SpaceX's fixed-location (or mobile, depending on use case) satellite internet antenna, featuring a larger, non-motorized flat-panel design for improved performance, wider visibility, and easier permanent mounting (e.g., on roofs or poles). It relies on software-assisted manual orientation via the Starlink app—no built-in motors for auto-tilting.
Key identification features:
Large rectangular flat panel measuring approximately 594 mm × 383 mm × 39.7 mm (23.4" × 15.07" × 1.57").
Weighs about 2.9 kg (6.4 lb) standalone, or 3.2 kg (7 lb) with the kickstand, and up to 3.8 kg (8.3 lb) including the 15 m cable.
Includes a detachable kickstand for angled manual positioning on the ground or surfaces.
110° field of view with software-guided setup (point the dish toward the sky for best satellite coverage).
Rugged IP67-rated design (when cables/kickstand installed) for dust, water resistance, and harsh weather; operates from -30°C to 50°C (-22°F to 122°F).
Average power consumption: 75–100 W (higher than previous models due to the expanded antenna array).
Comes with a separate Gen 3 Wi-Fi 6 router (not integrated into the dish).
Look for its slim, wide rectangular profile (taller and broader than the Mini, flatter and motor-free compared to the Gen 2 Actuated with its central mast and tilt mechanism). The photo shows a typical roof-mounted setup with the dish angled on a pole mount.
If your dish matches the uploaded image and specs—large flat rectangle with kickstand notches, no motorized base—you have the Starlink Standard (Gen 3) model!

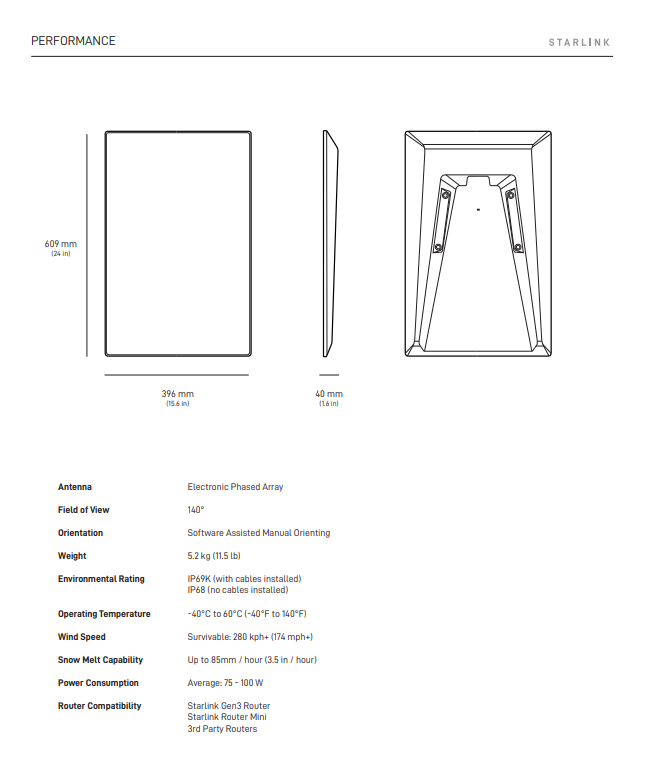

Starlink Performance (Gen 3)
The Starlink Performance (Gen 3) is SpaceX's rugged, high-durability satellite internet antenna, the latest and most advanced dish model designed for demanding environments like business, maritime, mobility, extreme weather, or in-motion use. It offers superior speeds (up to 400+ Mbps download), a wider field of view, and exceptional resilience compared to consumer models like the Standard or Mini.
Key identification features:
Large rectangular flat-panel design measuring approximately 609 mm × 396 mm × 40 mm (24" × 15.6" × 1.6").
Weighs 5.2 kg (11.5 lb) with cables installed.
140° field of view — significantly wider than the 110° on Standard/Mini models — for better satellite tracking, especially in challenging or moving setups.
Software-assisted manual orientation (no motors; fixed or mounted at an angle for optimal performance).
Ultra-rugged build with IP69K rating (with cables installed) or IP68 (unplugged) for dustproofing, high-pressure water resistance, and even short-term submersion; survives winds up to 280+ kph (174+ mph) and operates from -40°C to 60°C (-40°F to 140°F).
Enhanced snow melt capability: Up to 85 mm/hour (3.5 in/hour).
Average power consumption: 75–100 W.
Compatible with the Starlink Gen 3 router, Starlink Mini router, or third-party routers; includes advanced power supply options (AC/DC, PoE).

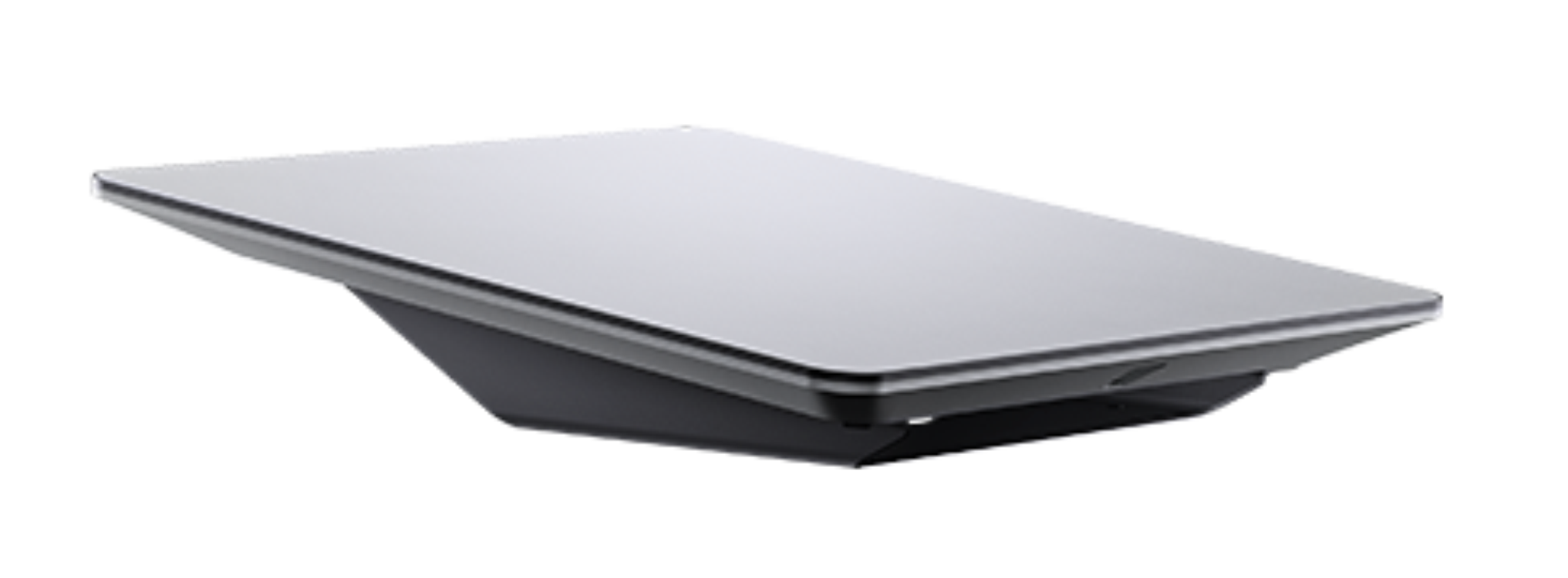

Look for its robust, aluminum-like flat rectangular profile (larger and thicker than the consumer Standard Gen 3, no kickstand or motorized base like older models), often mounted flat or on vehicles/boats/roofs for permanent or mobile use. The attached photo shows its sleek, low-profile black/gray design with a sturdy base.
If your dish matches the uploaded image and specs—substantially larger panel, wider 140° FOV, heavy-duty IP69K rating, and no auto-tilt mechanism—you have the Starlink Performance (Gen 3), the current top-tier/latest Starlink dish model!

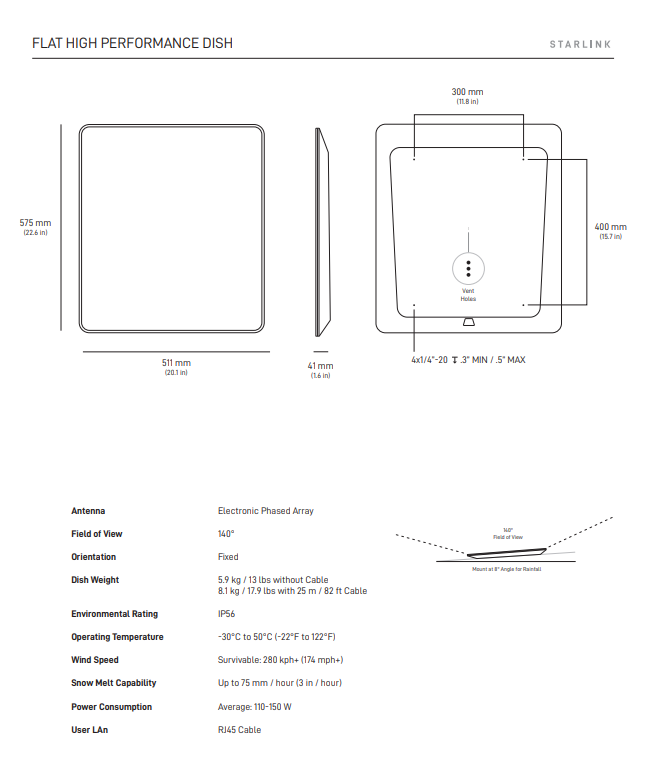

Starlink Performance (Gen 2)
The Starlink Performance (Gen 2) (also known as the original Flat High Performance dish) is SpaceX's rugged, fixed-orientation satellite antenna designed for demanding mobile, maritime, in-motion, enterprise, and extreme-environment applications. It provides reliable high-speed connectivity (often 200–400+ Mbps) even while moving on vehicles, boats, or in challenging locations, with enhanced satellite visibility and durability.
Key identification features:
Square/rectangular flat-panel design measuring approximately 575 mm × 511 mm × 41 mm (22.6" × 20.1" × 1.6"), with a low-profile build and vent holes on the back.
Weighs 5.9 kg (13 lb) without cable, or about 8.1 kg (17.9 lb) with the included 25 m (82 ft) cable.
Wide 140° field of view — allowing it to see 35% more sky than standard consumer dishes for better performance in obstructed, polar, equatorial, or in-motion scenarios.
Fixed orientation (no motors or kickstand; mounts flat or at a slight angle, often with a wedge kit for drainage/rain shedding).
Robust IP56-rated environmental protection (water jet and dust resistant), survives winds up to 280+ kph (174+ mph), operates from -30°C to 50°C (-22°F to 122°F), and melts snow up to 75 mm/hour (3 in/hour).
Average power consumption: 110–150 W (higher due to advanced phased array and power supply for demanding use).
Supports direct Ethernet/RJ45 connection (bypasses the router if desired), with a beefier power supply unit and longer hybrid cable for permanent or vehicle/boat installations.
Look for its distinctive large, square-ish flat profile (bigger than the consumer Standard Gen 3 or Mini, squarer and more industrial-looking than the rectangular Performance Gen 3), often mounted flat on roofs, vehicles, or vessels with mounting holes visible. The attached photo shows its sleek, low-profile white/gray dish with a sturdy base and no tilt mechanism.
If your dish matches the uploaded image and specs—large square flat panel, 140° FOV, fixed mount design, heavy-duty build, and higher power draw—you have the Starlink Flat High Performance (Gen 2) model, the predecessor to the current Performance Gen 3 dish!
